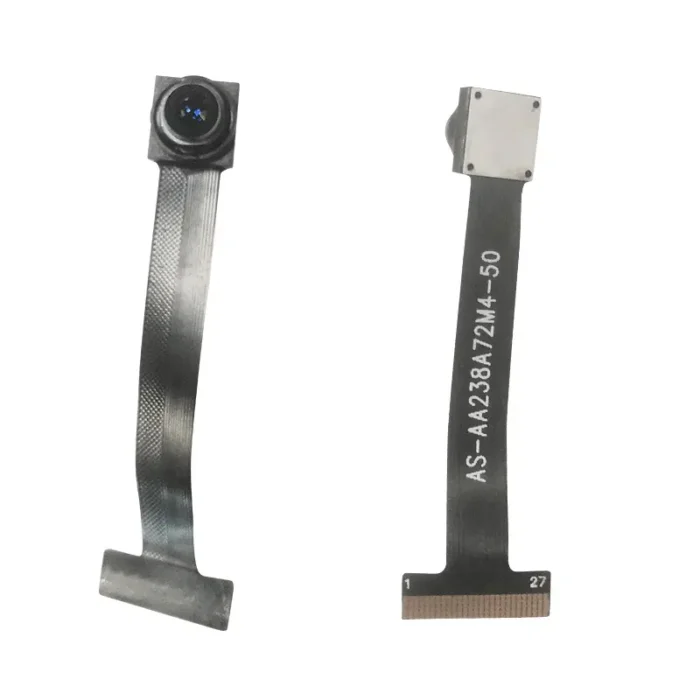

DGZX-AS-AA238A72M4-50 OV2732 HD 2MP Mini Low Power Color MIPI Camera Module

The OV2732 1/4-inch mini low-power color 2MP 1080 HD 90fps-240fps MIPI camera module is introduced in detail as follows:

OV2732 CMOS image sensor:

The OV2732 is an image sensor developed by OmniVision, which integrates PureCel® technology and is designed for IoT-based residential and commercial surveillance systems. The camera module adopts a 1/4-inch mini size, low power consumption, can capture color 1080 HD images, and supports high-speed frame rates from 90fps to 240fps, which is very suitable for application scenarios that require high resolution and high frame rate, such as face recognition, license plate recognition, etc.

High-definition image capture:

Supports 1080p HD resolution (1920×1080), capable of capturing delicate and clear images and videos.
Using PureCel® technology, it ensures superior image quality and high color reproduction.

High-speed frame rate:

Supports high-speed frame rates from 90fps to 240fps, suitable for capturing fast-moving objects and monitoring dynamic scenes.
The frame rate varies at different resolutions, such as 60fps at 1080p, 90fps at 720p, 120fps at VGA resolution, and 240fps at QVGA resolution.

Low-power camera module：

Designed for low-power applications, it is suitable for battery-powered monitoring systems and other IoT devices.
Supports ultra-low power mode (ULPM), which helps to extend the life of the device.

MIPI interface camera module:

Adopts MIPI interface to support high-speed data transmission, ensuring the smoothness and real-time performance of images and videos.
MIPI interface also supports the output of multiple image sizes and formats to meet different application requirements.

Face recognition function canera:

The camera module supports face recognition function, which can accurately and quickly identify facial features.
Combined with appropriate algorithms and software, advanced applications such as face recognition access control and face payment can be realized.

Other functions:

Supports frame synchronization function, suitable for multi-camera or 360-degree camera systems.
Built-in ambient light sensor (ALS) can automatically adjust image parameters according to light conditions.
Provides programmable gain, exposure, frame rate, image size and other control functions.

The OV2732 camera module is suitable for a variety of application scenarios, including but not limited to:

Smart home: used for home security monitoring, baby care, etc.

Commercial monitoring: used for security monitoring in retail stores, offices, banks and other places.

Car camera: used for assisted driving, driving recorder and other functions.

Machine vision: used in industrial automation, quality inspection and other fields.

Biometrics: used for advanced applications such as face recognition access control and face payment.

Customized support:

Online technical support, Customized logo, OEM, ODM, Software reengineering

Min. order: 3 piece
