Back to products

-6%low lightnight vision

DGZX-AS-AA188A29D19-50 OV9281 1MP global shutter infrared AI vision Camera Module缩略图

OV9281 Global Shutter Infrared AI Vision Camera Module

Click to enlarge

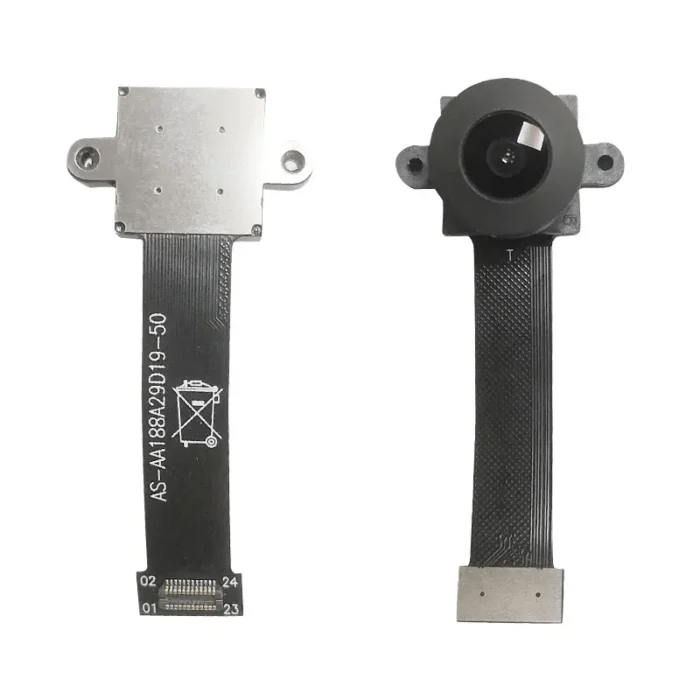

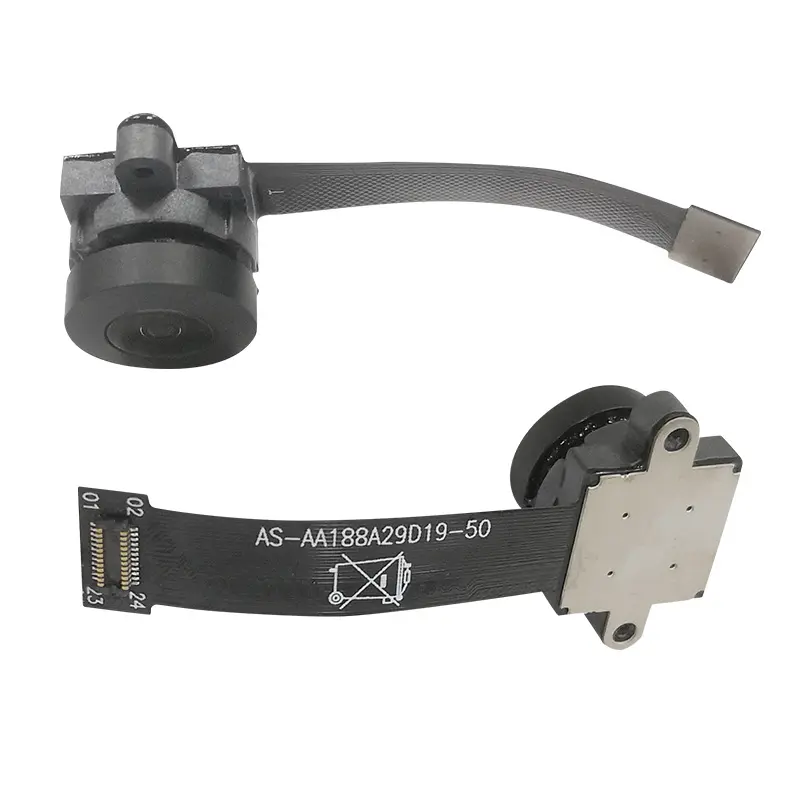

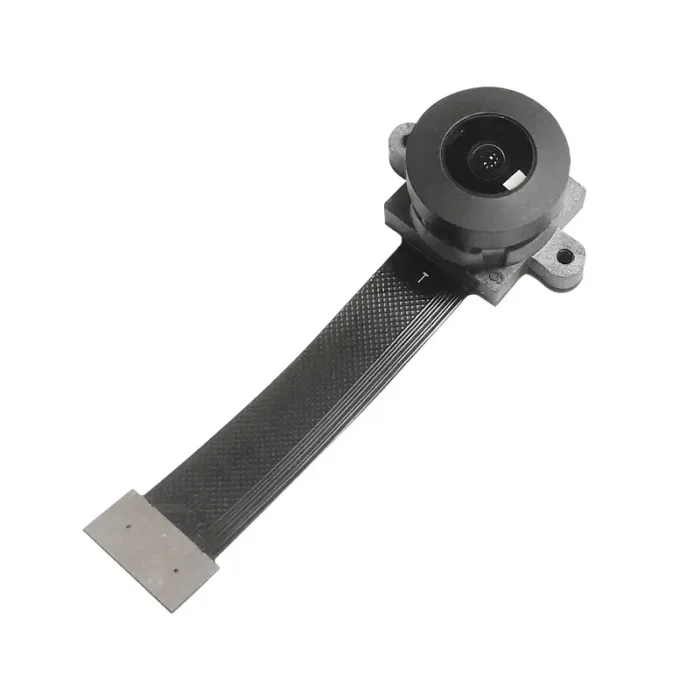

DGZX-AS-AA188A29D19-50 OV9281 1MP global shutter infrared AI vision Camera Module

Name: DGZX-AS-AA188A29D19-50 OV9281 1MP global shutter infrared AI vision Camera Module
SKU: 19229
Price: 18.70 HKD
Availability: InStock

Original price was: $19.90.Current price is: $18.70.

Image Sensor:OV9281 Pixel:1MP Sensor Size:1/4-inch

Interface type:DVP Frame rate:120FPS

System compatible:Linux, Windows , Android

Network:Ip, SDK Video Compression Format:H.264, RAW, JPEG, YUV

Special Features:NIGHT VISION, face recognition, Support ESP32, Low Light, Low illumination

Customized support:Online technical support, Customized logo, OEM, ODM, Software reengineering

Pixel	1MP Camera Module
FUNCTION	low light, night vision

Compare

Add to wishlist

Categories: Dvp Camera Module, Esp32 Camera Module, Infrared camera module, Low illumination camera module Tags: 1MP camera, AI vision Camera, global shutter camera, Infrared Camera, OV9281 camera

Reviews

There are no reviews yet.

Be the first to review “DGZX-AS-AA188A29D19-50 OV9281 1MP global shutter infrared AI vision Camera Module”

RELATED PRODUCTS

Compare

DGZX-8965 1MP sensor SC1345 camera module high sensitivity 720P 30fps USB UVC driver-free camera module

Usb2/3.0 Camera Module

$15.00

Special Features:face recognition Network:bluetooth, wifi, ONVIF, TCP, Ip, SDK Video Compression Format:H.265, H.264 Image Sensor:SC1345 Pixel:1MP HD:720P Interface:USB Lens Size:1/4.5 inch Frame rate:30fps Color space / compression:YUY2 / MJPG Module Dimensions:38*38mm System compatible:Windows Android Linux Certification:RoHS

Add to wishlist

Add to cart

Quick view

night vision

Compare

DGZX-AS-AB358A02M17 GC2053 2MP 1080P MIPI CMOS camera module

Dvp Camera Module, Mipi(CSI) Camera Module

$12.00

Image sensor:GC2053 Optical Format:1/2.9-inch Pixel size:2.8 um* 2.8um Pixel:1080 Frame rate:30fps Network:SDK Video Compression Format:H.264 Resolution:1920*1080 Interface type:MIPI （customizable DVP USB ） System compatible:Windows Android Linux Color:RAW Bayer Certification:RoHS

Add to wishlist

Add to cart

Quick view

-7%color cameraInfrared Night Vision

Compare

DGZX-AS-AE448A10M3-25 AR0144 1MP Mipi global exposure color infrared camera module

Mipi(CSI) Camera Module

1MP global exposure color AR0144 sensor 720P high speed scanning 60 fps infrared camera module Mipi DVP

Add to wishlist

Add to cart

Quick view

-31%

Compare

DGZX-AS-BB808A30D54-33 AG0308 0.3MP electronic rolling shutter ISP micro camera module

Dvp Camera Module

Sensor Model: GC0308 Resolution: 0.3MP (i.e. 640x480 pixels), meets VGA standard. Focal Length: Fixed Focus, suitable for close-up shooting Interface Type: DVP (Digital Video Port) Control Interface: SCCB (Serial Camera Control Bus)

Add to wishlist

Add to cart

Quick view

with ISP

Compare

DGZX-AS-DB548A12M15-35 GC2145 2MP MIPI RGB color ESP32 camera module

Esp32 Camera Module, Mipi(CSI) Camera Module

$8.53

Image Sensor:GC2145 Pixel:2MP 1600x1200 Frame rate:30fps Module Dimensions:35mm(L) HD:720P UXGA SCGA Interface:MIPI Lens Size:1/5 inch Network:wifi, Ip, SDK Color space / compression:RAW RGB System compatible:Windows Android Linux Special Features:face recognition, Built-in ISP Video Compression Format:RAW, YUV Certification:RoHS

Add to wishlist

Add to cart

Quick view

Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!

Recent articles

Sharing useful information: What is a camera module?

Raspberry Pi launches camera module: opening a new era of vision-based AI applications

Dogoozx explains for you: How do USB cameras complete shooting?

About Dogoozx

Join The club

Terms of Service
Shipping instructions
Return and exchange terms
Product returns
Purchase history

No account yet?

Create an Account

A 1MP global shutter infrared AI vision camera module based on the OV9281 sensor

OV9281 sensor model

A high-performance CMOS image sensor produced by OmniVision Technologies.

1MP Camera Module

1MP (1280×800 or 1280x720p, may vary depending on the specific product), capable of maintaining clear image quality in low light conditions.

Global Shutter Camera Module

Global shutter technology enables the sensor to capture the entire image at the same time, avoiding motion blur and rolling shutter effects

Infrared Support

The module supports infrared imaging, suitable for monitoring and identification tasks at night or in low light environments.

AI Vision camer module

With powerful image processing capabilities, it supports the application of AI algorithms such as face recognition, biometrics, liveness detection, etc.

Support ESP32

The module can be seamlessly connected to the ESP32 microcontroller to achieve efficient image data transmission and processing.

Support Raspberry Pi

Also supports open source hardware platforms such as Raspberry Pi, which is convenient for developers to carry out secondary development and customized applications.

Operating System Compatibility

Supports multiple operating systems such as Linux, Windows, Android, etc., which is convenient for integration and application on different platforms.

Application scenarios

security monitoring, smart devices, robotics
It can also be applied to vehicles, drones, self-service terminals, image transmission, barcode scanning, infrared detection and other fields.

Packaging and delivery

Selling Units:Single item

Single package size:10X10X10 cm

Single gross weight:0.500 kg

Lead time

Quantity (pieces)	1 – 5	6 – 500	> 500
Lead time (days)	7	18	To be negotiated

Customization

Customized logo

Min. order: 3 piece

Customized packaging

Min. order: 3 piece

Graphic customization

Min. order: 3 piece

For more customization details, message supplier
